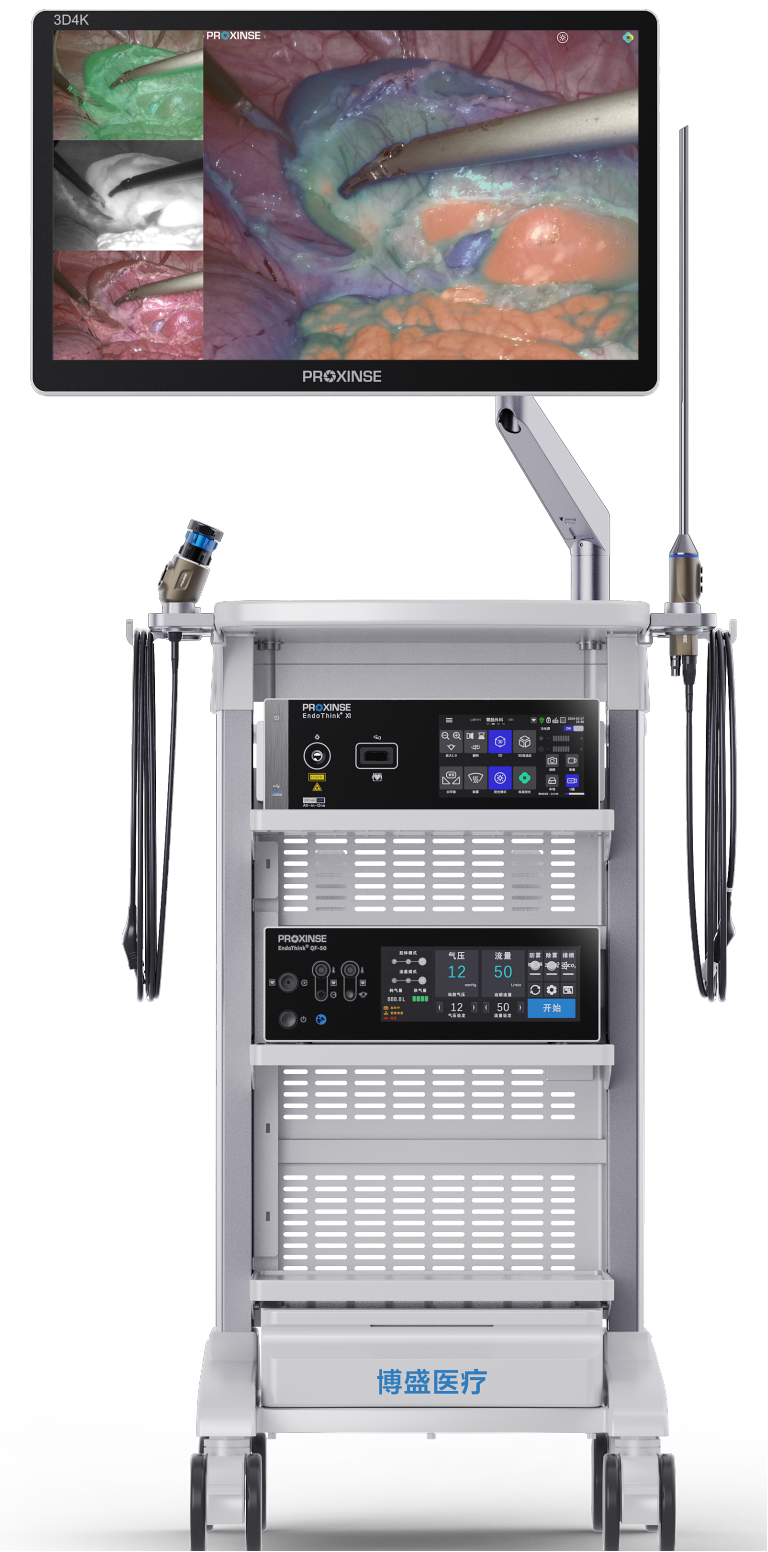

X1 3D 4K NIR/ICG endoscope camera system includes endoscope image processor, 3D 4K(UHD) NIR/ICG electronic laparoscope, 4K NIR/ICG endoscope camera head and CO2 insufflator and etc. The configuration can be very flexible according to different clinical needs and requirements.

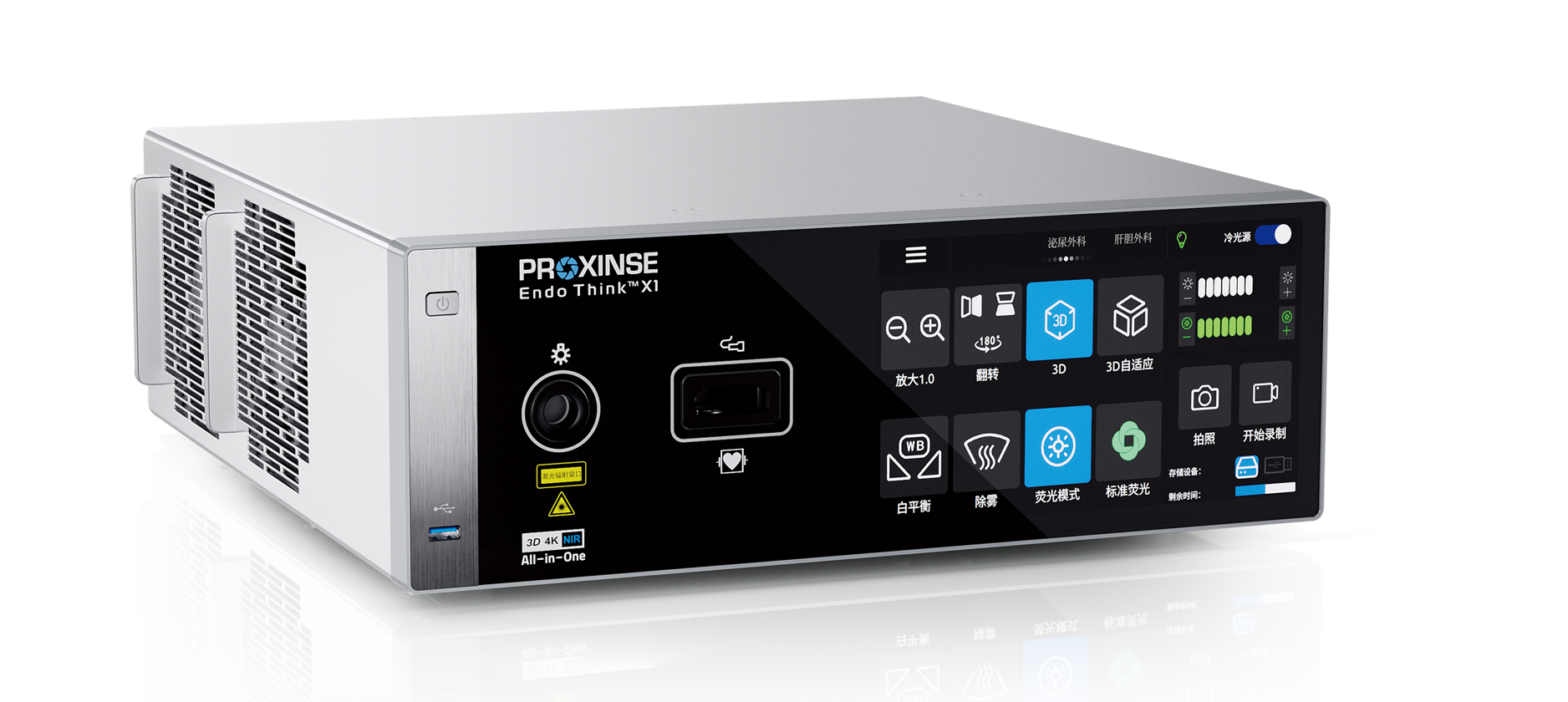

Endoscope (NIR/ICG) Image Processor

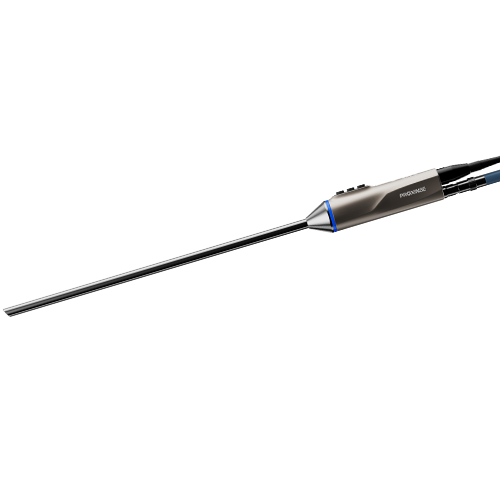

4K 3D (NIR/ICG) Electronic Laparoscope
Multi-Functional CO2 Insufflator

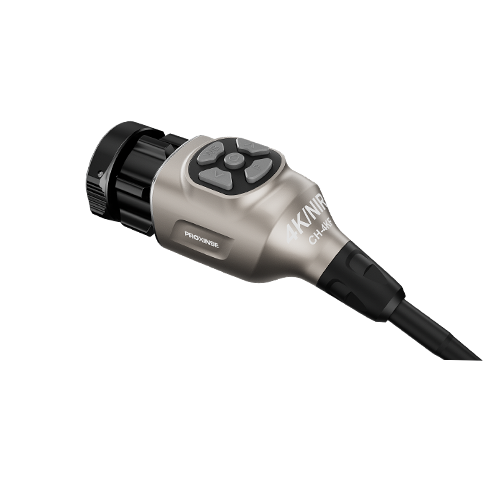

4K (NIR/ICG) UHD Endoscope Camera Head
Built in fluorescent light source and video recorder
Supporting 4K(2D/3D) video recording
4K/3D/NIR/ICG integrated into one telescope with no need to change the camera head
The system comes with multiple department modes which are applicable to general surgery, hepatobiliary surgery, gastrointestinal surgery, thoracic surgery, neurosurgery, urology, gynecology and more
One key to switch between 2D and 3D
Supporting ±180° rotation
Applicable to cardiothoracic surgeries
(abdominal cavity/BF, chestcavity+abdominal cavity/CF)
BT.2020 Color gamutand high color depth bring clear and bright visualization
Nature color recording makes post-operative replay and training more immersive
Highly optimized sharpening, denoising, contrastand color enhancemental gorithms to achievestate-of-artcrisp-clear image performance
Two high sensitivity 3840x2160P CMOS sensors to achieve immersive depth perception
With this technology, the surgeon is nolonger required to use 3D endoscope with a fixed working distance. The system provides acomfortable 3D viewing experience within working distances from 3cm to as far as 15cm
To collect visible white light and near-infrared light of
810-900 nm
Available Lengths: 340mm/350mm/380mm/390mm/500mm/510mm
Effectively enhance image stability and improve surgical confidence
Applicable to cardiothoracic surgeries
(abdominal cavity/BF, chest cavity+abdominalcavity/CF)
Dual 4K CMOS sensors to provide increased resolution and a wider color space
Light weight camera head to reduce fatigue
5x customizable buttons for 21 functions
Enhances ability to assess perfusion and reduces complications rates
NIR light collection range: 810-900nm

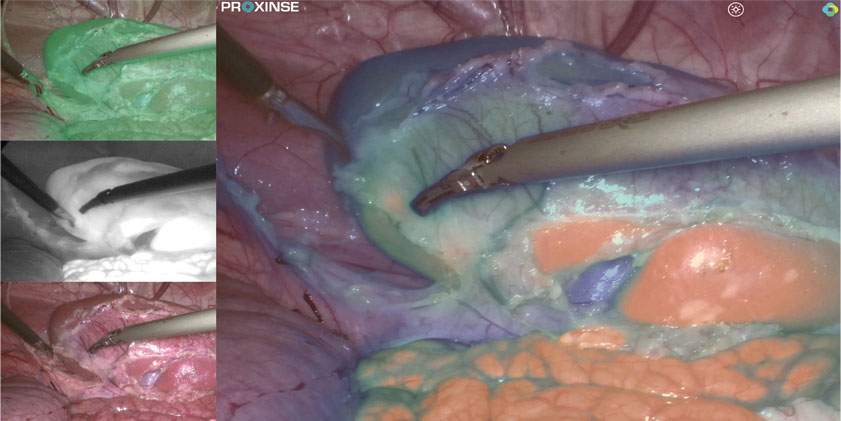

Monochromatic mode, overlay with NIR/ICG displayed in green or blue, intensity map of ICG signal
Improvement of visibility
Clear images without barrel distortion
Autoclavable and low temperature plasma sterilization
Durable and extend service life
80° FOV, 0°& 30° available
Maximum 50L/min, high speed insufflation
1-30mmHg pressure control to master every situation
Adult mode & baby mode
CO2 is heated to body temperature‒this is particularly important for babies and infants
The heated CO2 also prevents the misting of the telescope and provides clear visualization
The smoke produced by energy platform is extracted and filtered which significantly improves surgical field
